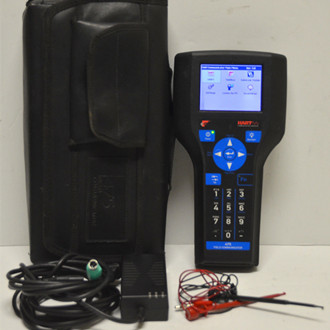

Emerson 475FP9EKLUGM9AS 475 Field Communicator Handheld 475 Hart Field Communicator
Simplify your work in the field with the the intrinsically safe, rugged 475 Field Communicator.This built-for-purpose handheld communicator delivers universal support for HART and Foundation Fieldbus devices, a full-color graphical user interface, and a long-lasting Lithium-Ion power module. It is designed to withstand the knocks and shocks from normal use in the field.
Description
The Process Management 475 Field Communicator establishes the new standard for handheld communicators. With a full-color user interface, powerful diagnostic capabilities, and fast start up and operating times, the Process Management 475 Field Communicator will power your experience and simplify your work in the field.
The Process Management 475 Field Communicator supports all HART, FOUNDATION fieldbus, and Wireless HART devices and is intrinsically safe so it can go wherever you go.
| Process Management 475 Field Communicator Specifications | |
| Microprocessor | 80 MHz Hitachi SH3 |
| Memory internal flash | 32 MB |
| System card | 1 GB secure digital card |
| RAM | 32 MB |
| Weight | App. 1.65 lb (0.75 kg) w/battery |
| Display |
1/4 VGA (240 x 320 px) color, 3.5 in (8,9 cm) transreflective display w/touchscreen,anti-glare coat |
| Keypad |
25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key,backlight key, power key,and 4 cursor-control (arrow) keys; membrane design with tactile feedback |
| Battery | Rechargeable lithium-ion power module |
|
Battery operating time |
20 hours - continuous use 40 hours - typical use 80 hours - standby mode |
|
Battery charger options |
Input voltage 100-240 VAC, 50-60 Hz Cables included with US, Europe, and UK plugs |
| Battery charger | Min DIN 6-pin jack |
| HART and Fieldbus | Three 4mm banana plugs (one common to HART and Foundation fieldbus) |
| IrDA Port |
IrDA (Infrared Data Access) port supporting up to 115 Kbps ±15 degrees recommended maximum angle from center line App. 18 in recommended maximum distance |
| Bluetooth |
Up to 32.8 ft (10 m) communication distance Uses standard Windows drivers FCC, IC and CE approvals |
Features
• View device diagnostics in charts, graphs, and gauges for easy readability and diagnosis with full-color user interface
• Powerful diagnostics from devices in the field
• Establish quick connection between your PC and communicator with Bluetooth communication
• A long-lasting Lithium-Ion power module for days – not hours – of battery life
• Universal support for HART, WirelessHART, and FOUNDATION fieldbus devices
• Easy Upgrade allows you to enable new options for your 475 Field Communicator over the Internet.
• Easily store and print device configurations for analysis and documentation requirements.
• Host System Interoperability gives you flexibility
Emerson 475FP9EKLUGM9AS 475 Field Communicator Handheld 475 Hart Field Communicator
The Emerson Process Management 475 Field Communicator establishes the new standard for handheld communicators. With a full-color user interface, powerful diagnostic capabilities, and fast start up and operating times, the 475 will power your experience and simplify your work in the field.
The 475 Field Communicator supports all HART, FOUNDATION fieldbus, and Wireless HART devices and allows you to upgrade your HART 475 Field Communicator onsite using the Internet.
Uses for the Emerson 475FP9EKLUGM9AS 475 Field Communicator Handheld 475 Hart Field Communicator include:
• Configure field devices or perform diagnostics for effective troubleshooting in the field.
• Create a quality segment
• Detect power supply problems
• Run valve diagnostics
• Locate incorrect terminations and faulty devices without dragging a laptop into the plant.
The 475 is fully compatible with AMS Suite: Intelligent Device Manager. AMS Device Manager allows you to configure, calibrate, document, and troubleshoot HART, FOUNDATION fieldbus, and Wireless HART devices. Easily transfer device configurations between AMS Device Manager and the 475 via Bluetooth to ensure you are always looking at the most updated device information.
New HART and FOUNDATION fieldbus devices, as well as updates to existing devices, are continually introduced by device vendors. With Easy Upgrade, you can keep your Emerson Process Management HART 475 Field Communicator updated with the most current Device Descriptions (DDs) for all the devices in your plant. Update at your site, get only what you need, and do it when it is convenient for you.
Emerson 475FP9EKLUGM9AS 475 Field Communicator Handheld 475 Hart Field Communicator
If you’re in the field service business and you already know the importance of having reliable, it is easy to use equipment. When it comes to hart communicator Emerson has established the well deserved reputation for quality with models like the 375 field communicator and that tradition continues in their most recent model the Emerson 475 Field Communicator.
When holding the 475 in hand you may feel the quality and the full color graphical interface makes it easy to use with clear graphics and adjustable brightness for working in varied lighting conditions.
The speed of the 475 is a noticeable improvement over similar devices and the boot time is nearly instantaneous. A long lasting lithium ion power module ensures that you can count on your Emerson 475 for days not hours and with universal support for hart, wirelesshart and foundation fieldbus devices its ready for the task at hand.
Emerson 475 hart communicator manual
Emerson 475 hart communicator price
Emerson 475 field communicator easy upgrade utility
Emerson 475 hart communicator calibration
Emerson 475 hart field communicator
475 hart communicator
475 hart communicator price
handheld 475 hart field communicator
Model Code for Ordering:
| HART/Fieldbus Configurations | |
| 475FP1EKLUGM9 | Emerson 475FP1EKLUGM9 475 Field Communicator with Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option |
| 475FP1EKLUGM9A | Emerson 475FP1EKLUGM9A 475 Field Communicator with Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option, and Spare Battery |
| 475FP1EKLUGM9AS | Emerson 475FP1EKLUGM9AS 475 Field Communicator: Power Supply & Charger, IS, Easy Upgrade Option, Spare Battery, Protective Rubber Boot: Stand |
| 475FP1EKLUGM9S | Emerson 475FP1EKLUGM9S 475 Field Communicator with Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option, Protective Rubber Boot with Stand |
| 475FP1EKLUGMT | Emerson 475FP1EKLUGMT 475 Field Communicator: Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option, Bluetooth, Spare Battery |
| 475FP1EKLUGMTA | Emerson 475FP1EKLUGMTA 475 Field Communicator: Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option, Bluetooth, Spare Battery |
| 475FP1EKLUGMTAS | Emerson 475FP1EKLUGMTAS 475 Field Communicator: Power Supply & Charger, IS, Easy Upgrade, Bluetooth, Spare Battery, Protective Rubber Boot |
| 475-F-P-1-E-KL-U-GM-T-S | Emerson 475FP1EKLUGMTS 475 Field Communicator: Power Supply & Charger, IS, Easy Upgrade Option, Bluetooth, Protective Rubber Boot: Stand |
| 475FP1ENAUGM9 | Emerson 475FP1ENAUGM9 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option |
| 475FP1ENAUGM9A | Emerson 475FP1ENAUGM9A 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Spare Battery |
| 475FP1ENAUGM9AS | Emerson 475FP1ENAUGM9AS 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Spare Battery, Protective Rubber Boot with Stand |
| 475FP1ENAUGM9S | Emerson 475FP1ENAUGM9S 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Protective Rubber Boot with Stand |
| 475FP1ENAUGMT | Emerson 475FP1ENAUGMT 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Bluetooth Communication |
| 475FP1ENAUGMTA | Emerson 475FP1ENAUGMTA 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Bluetooth Communication, Spare Battery |
| 475FP1ENAUGMTAS | Emerson 475FP1ENAUGMTAS 475 Field Communicator: Power Supply & Charger, Easy Upgrade Option, Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475FP1ENAUGMTS | Emerson 475FP1ENAUGMTS 475 Field Communicator: Power Supply & Charger, Easy Upgrade Option, Bluetooth, Protective Rubber Boot: Stand |
| 475FP9EKLUGM9 | Emerson 475FP9EKLUGM9 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option |
| 475FP9EKLUGM9A | Emerson 475FP9EKLUGM9A 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Spare Battery |
| 475FP9EKLUGM9AS | Emerson 475FP9EKLUGM9AS 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Spare Battery, Protective Rubber Boot with Stand |
| 475FP9EKLUGM9S | Emerson 475FP9EKLUGM9S 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Protective Rubber Boot with Stand |
| 475FP9EKLUGMT | Emerson 475FP9EKLUGMT 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Bluetooth Communication |
| 475FP9EKLUGMTA | Emerson 475FP9EKLUGMTA 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Bluetooth Communication, Spare Battery |
| 475FP9EKLUGMTAS | Emerson 475FP9EKLUGMTAS 475 Field Communicator: No Power Supply/Charger, Easy Upgrade Option, Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475FP9EKLUGMTS | Emerson 475FP9EKLUGMTS 475 Field Communicator: No Power Supply/Charger, Easy Upgrade Option, Bluetooth, Protective Rubber Boot: Stand |
| 475FP9ENAUGM9 | Emerson 475FP9ENAUGM9 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option |
| 475FP9ENAUGM9A | Emerson 475FP9ENAUGM9A 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Spare Battery |
| 475FP9ENAUGM9AS | Emerson 475FP9ENAUGM9AS 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Spare Battery, Protective Rubber Boot with Stand |
| 475FP9ENAUGM9S | Emerson 475FP9ENAUGM9S 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Protective Rubber Boot with Stand |
| 475FP9ENAUGMT | Emerson 475FP9ENAUGMT 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Bluetooth Communication |
| 475FP9ENAUGMTA | Emerson 475FP9ENAUGMTA 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Bluetooth Communication, Spare Battery |
| 475FP9ENAUGMTAS | Emerson 475FP9ENAUGMTAS 475 Field Communicator: No Power Supply/Charger, Easy Upgrade Option, Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475FP9ENAUGMTS | Emerson 475FP9ENAUGMTS 475 Field Communicator: No Power Supply/Charger, Easy Upgrade Option, Bluetooth, Protective Rubber Boot: Stand |
| 475FP1EKL9GM9S | Emerson 475FP1EKL9GM9S Field Communicator w/PSU & Charger, Certified, Boot |
| 475FP1EKL9GMTA | Emerson 475FP1EKL9GMTA Field Communicator w/PSU & Charger, Certified, Bluetooth, Li-ion |
| 475FP1ENA9GM9AS | Emerson 475FP1ENA9GM9AS Field Communicator w/PSU & Charger, Spare Li-ion, Boot |
| 475FP1ENA9GM9S | Emerson 475FP1ENA9GM9S Field Communicator w/PSU & Charger, Rubber Boot |
